3-Speed Hot Water Circulating Pump 25-60/130mm for Central Heating System
3-Speed Hot Water Circulating Pump (25-60/130mm) Upgrade your home heating with this high-efficiency, multi-stage **Hot Water Circulating Pump**. Engineered for reliability and silent operation, this wet-rotor circulator pump is the ideal solution for boosting water pressure and ensuring consistent heat distribution in central heating systems, underfloor heating, and solar water heaters. With its flexible **3-speed control**, you can easily match the pump's output to your system's specifi
entral heating pump, 3 speed circulator, hot water booster pump, underfloor heating pump, 130mm circulation pump, boiler replacement pump, 230v hvac pump
3-Speed Hot Water Circulating Pump (25-60/130mm)
Upgrade your home heating with this high-efficiency, multi-stage Hot Water Circulating Pump. Engineered for reliability and silent operation, this wet-rotor circulator pump is the ideal solution for boosting water pressure and ensuring consistent heat distribution in central heating systems, underfloor heating, and solar water heaters. With its flexible 3-speed control, you can easily match the pump's output to your system's specific demands, optimizing both heating performance and energy consumption.
Key Features
- Adjustable 3-Speed Control: Features three power settings (46W / 63W / 93W) with a maximum head of 6 meters, allowing you to fine-tune the flow rate to eliminate cold spots in your home.
- Heavy-Duty Construction: Built with a durable, corrosion-resistant cast iron housing and engineered to withstand working pressures up to 10 bar.
- Whisper-Quiet Operation: The advanced wet-rotor design ensures the motor runs quietly, making it suitable for discreet indoor installation in utility rooms or kitchens.
- High Temperature Resistance: Rated for fluid temperatures up to 110°C (TF 110), meeting the strict demands of residential boiler and hot water systems.
- Standard 130mm Port-to-Port: Features a universal 130mm installation length with standard threaded connections for quick, hassle-free replacement of old pumps.
Technical Specifications

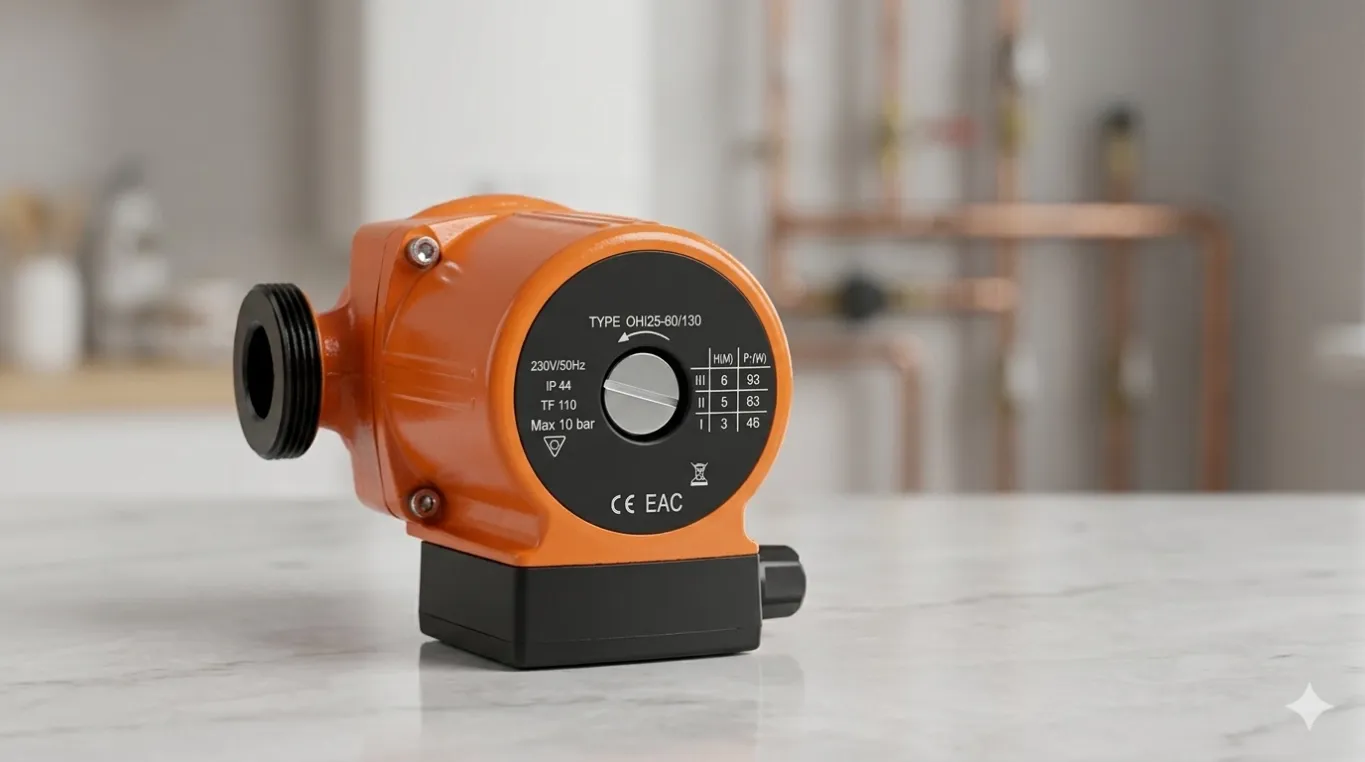

- Model Type: OHI 25-60/130
- Power Supply: AC 230V / 50Hz
- Protection Class: IP 44
- Temperature Class: TF 110 (Max Liquid Temp: 110°C)
- Maximum System Pressure: 10 bar
- Installation Length (Port-to-Port): 130 mm
- Performance Chart (Speed I / II / III):Speed III: Head: 6m | Power: 93WSpeed II: Head: 5m | Power: 63WSpeed I: Head: 3m | Power: 46W
- Compliance Certification: CE, EAC Approved
