Overview
Designed for residential, commercial, and industrial HVAC applications, our Air Conditioner Condensate Drain Pump Series provides a reliable and ultra-quiet solution for automatic condensate water removal. Engineered for high performance and trouble-free operation, these pumps prevent water leakage, overflowing, and system damage across a wide range of air conditioning units, including mini-split, ductless, ceiling cassette, and floor-standing systems.
Key Features
- Ultra-Quiet & High Efficiency: Built with high-performance motors and vibration-damping dampeners to ensure whisper-quiet operation in noise-sensitive environments like offices and bedrooms.
- Automatic Operation & Safety Switch: Equipped with precision float switches and optional overflow safety alarm contacts to automatically trigger pumping and prevent water spillage.

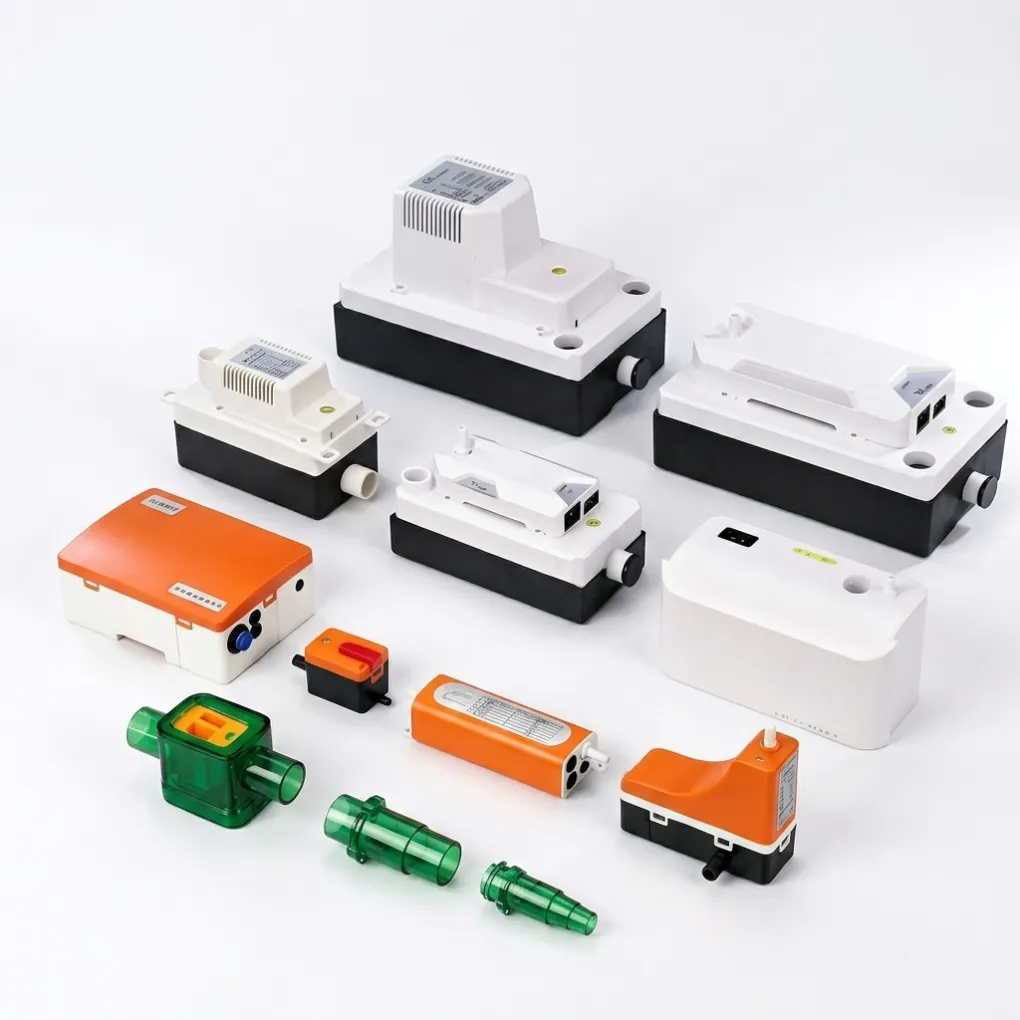

- Versatile Product Lineup: Available in multiple sizes, lift capacities, and flow rates (including compact mini pumps, tank-type pumps, and heavy-duty commercial condensate removal units).
- Durable & Compact Design: Flame-retardant ABS construction, compact foot-prints, and easy-mount brackets allow seamless installation inside AC units, trunking, or wall spaces.
- Easy Maintenance: Removable tank/reservoir design with built-in non-return check valves for quick cleaning and anti-backflow protection.
Technical Specifications
- Pump Type: Automatic Condensate Drain Pump (Tank & Mini-Split Types)
- Power Supply: AC 100–240V, 50/60 Hz
- Max Flow Rate: Up to 24–40 L/h (depending on model series)
- Max Discharge Head (Lift): 10 m – 12 m (33 ft – 40 ft)
- Applicable AC Capacity: Suitable for systems up to 30,000 BTU / 3HP – 10HP
- Noise Level: $< 19 \text{ dB(A)}$ at 1 meter (Mini Series)
- Certifications: CE / RoHS Compliant
Applications
- Wall-mounted mini-split AC units
- Ceiling cassette and duct-connected split systems
- Dehumidifiers and high-efficiency condensing furnaces
- Commercial HVAC and refrigeration display cases
