Professional Integrated Hydraulic Module for Air Source Heat Pump Systems

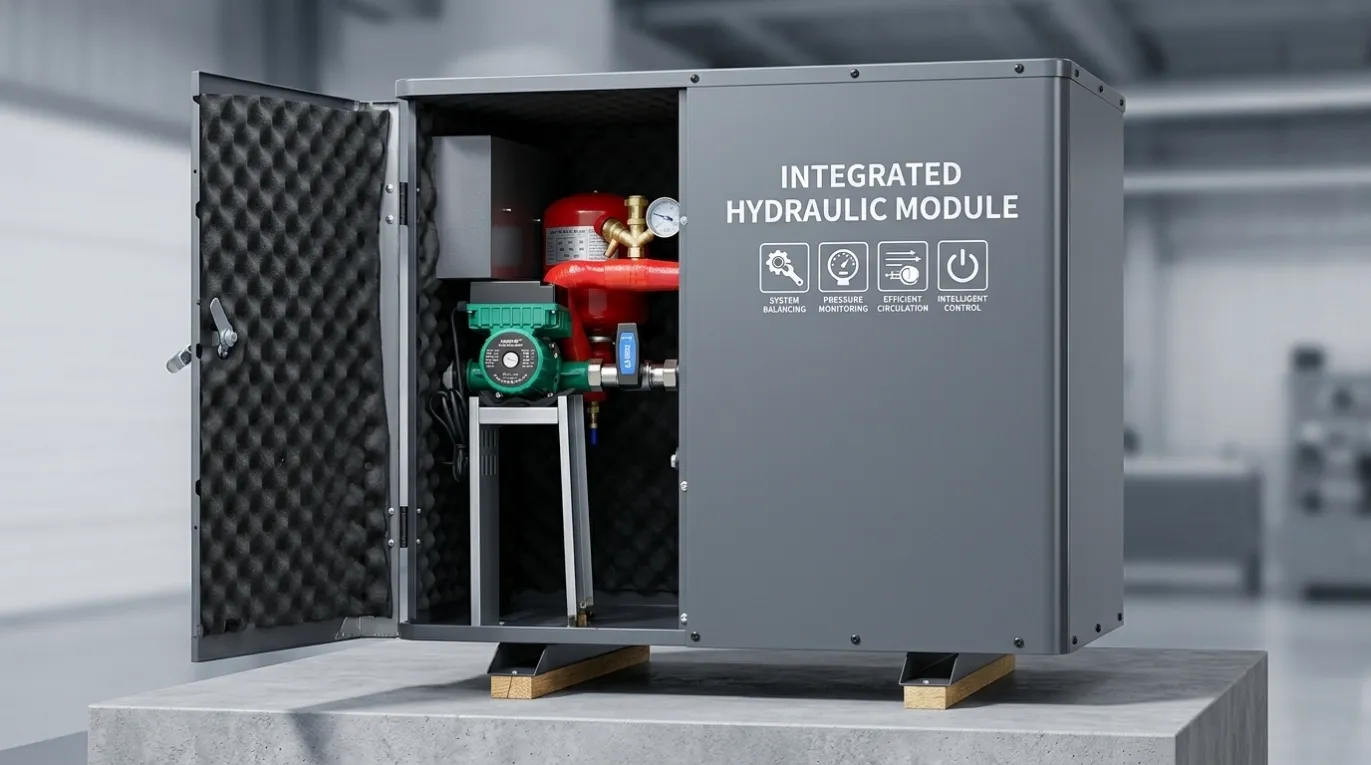

Introduce top-tier water management to your systems with our Professional Integrated Hydraulic Module, specifically engineered for precision and reliability within air source heat pump setups. Encased in a durable, matte dark gray steel cabinet with a premium textured finish, this module is designed for the seamless integration of key water-based components into a compact, protective housing. Key Features & Components: Integrated Multi-Component Design: The module safely houses critical compon
Introduce top-tier water management to your systems with our Professional Integrated Hydraulic Module, specifically engineered for precision and reliability within air source heat pump setups. Encased in a durable, matte dark gray steel cabinet with a premium textured finish, this module is designed for the seamless integration of key water-based components into a compact, protective housing.
Key Features & Components:
- Integrated Multi-Component Design: The module safely houses critical components, including a compact green circulator pump, a central flow meter, an integrated manifold assembly, and a robust red filter unit, all pre-plumbed and secured.
- Precision Pressure Monitoring: A clear, analog pressure gauge with a black and red dial and silver bezel is mounted on the manifold, allowing for real-time monitoring of system pressure.
- Intuitive Control: Two color-coded control knobs (a red shut-off valve handle and a distinct blue ball valve handle) are strategically positioned for easy operation and system balancing.
- Advanced Modular Panel: A pre-cut blank rectangular cut-out on the upper left panel offers versatility for adding optional digital controls, sensors, or custom gauge interfaces as needed.
- Custom Branding & Iconography: The front panel features a polished silver 'AIR-SOURCE INTEGRATED HYDRAULIC SYSTEM' logo with clean white lettering. Below this, four detailed laser-engraved icons with descriptions provide a professional overview of key system benefits: (1) System Balance Control, (2) Real-time Pressure Monitoring, (3) High-Efficiency Circulation, and (4) Intelligent Operation Control.
- Robust & Silent Construction: The heavy-duty steel cabinet is lined with specialized sound-absorbing acoustic foam to ensure quiet operation. The unit is supported by a stable metal plinth for floor mounting.
Applications:
- Centralized Heating and Cooling with Air Source Heat Pumps
- Radiant Floor Heating System Balancing
- Multi-Zone Water Distribution
- Industrial Fluid Distribution and Mixing
- Building Automation & Control
Ensure maximum performance, quiet operation, and streamlined control in your air source heat pump installations with this professional-grade hydraulic module.
