Stainless Steel Hydronic Mixing Shunt Station with Circulation Pump
The Stainless Steel Hydronic Mixing Shunt Station is a pre-assembled, high-performance fluid control assembly designed for hydronic central heating and underfloor heating systems. Equipped with an integrated circulation pump setup, low-loss hydraulic decoupling header, dual pressure/temperature gauges, and multi-loop manifolds, this station balances system pressures, regulates supply water temperatures, and ensures energy-efficient zone distribution.Key FeaturesPre-Assembled Integrated Design: C
The Stainless Steel Hydronic Mixing Shunt Station is a pre-assembled, high-performance fluid control assembly designed for hydronic central heating and underfloor heating systems. Equipped with an integrated circulation pump setup, low-loss hydraulic decoupling header, dual pressure/temperature gauges, and multi-loop manifolds, this station balances system pressures, regulates supply water temperatures, and ensures energy-efficient zone distribution.
Key Features
- Pre-Assembled Integrated Design: Combines a hydraulic separator, circulation pump loop, supply/return headers, and monitoring gauges into a compact, ready-to-install unit.
- Corrosion-Resistant Stainless Steel: Manufactured with high-durability stainless steel to withstand continuous high-temperature operation and long-term fluid exposure.
- Precision Temperature & Pressure Monitoring: Built-in dual analog gauges allow real-time tracking of system supply and return conditions for optimal boiler and heat pump efficiency.
- Hydraulic Decoupling & Balance: Decouples primary boiler flow from secondary distribution loops to eliminate pump interference and prevent thermal shock.
- Universal Union Connections: Designed with standard DN25 (1") union fittings for quick, secure connection to main heating supply lines and manifold loops.
Technical Specifications
- Pump Model: 15-6 Circulator Pump Compatible
- Main Tank Diameter: $\Phi 80\text{ mm}$
- Branch Spacing: $50\text{ mm}$ Port Pitch / $130\text{ mm}$ Center Distance
- Tank Inlet Size: DN25 ($1\text{''}$)
- Branch Connections: DN25 ($1\text{''}$) Union Fittings

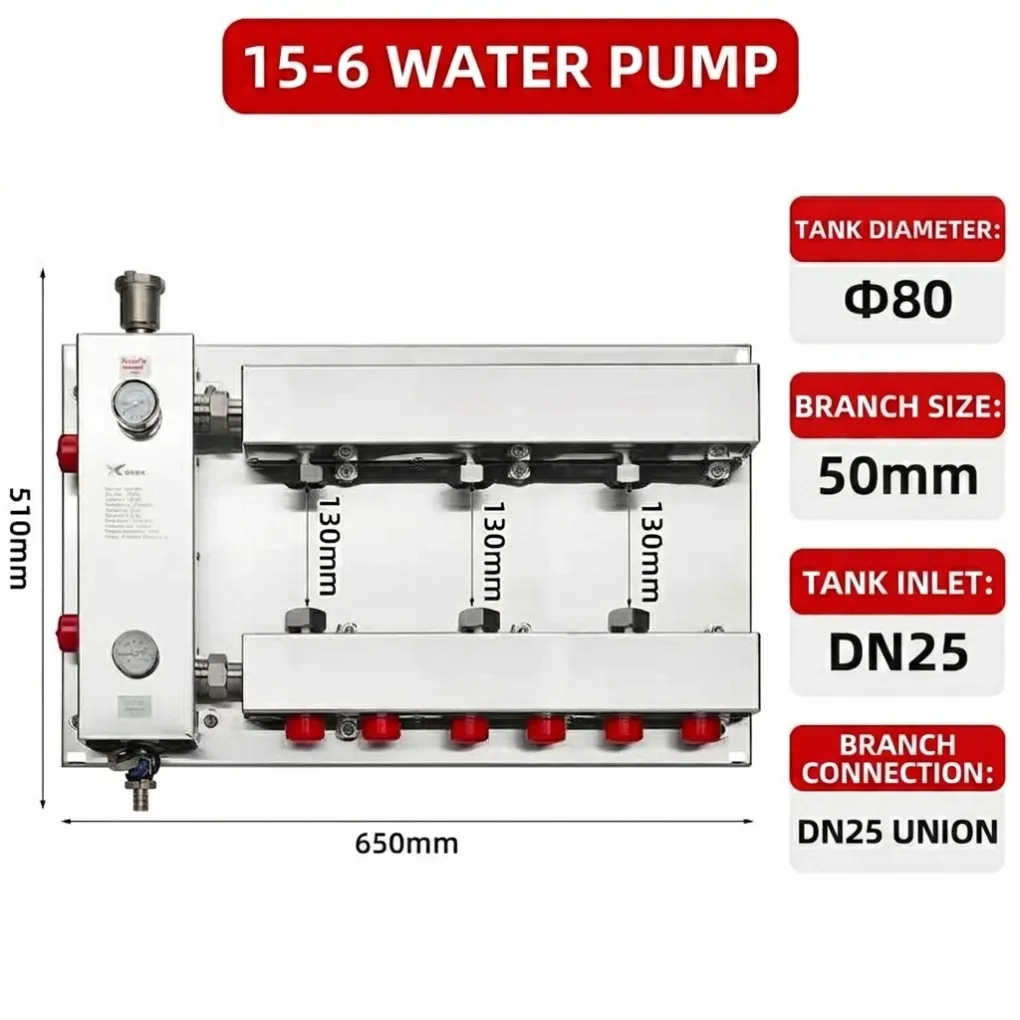

- Dimensions: $650\text{ mm (Width)} \times 510\text{ mm (Height)}$
- Max Operating Pressure: 6 bar (0.6 MPa)
- Max Temperature: $110^\circ\text{C}$
Applications
- Radiant underfloor heating and wall radiator distribution
- Air-to-water heat pump and condensing boiler system integration
- Multi-zone hydronic heating and cooling systems
- Residential and commercial HVAC mechanical rooms
