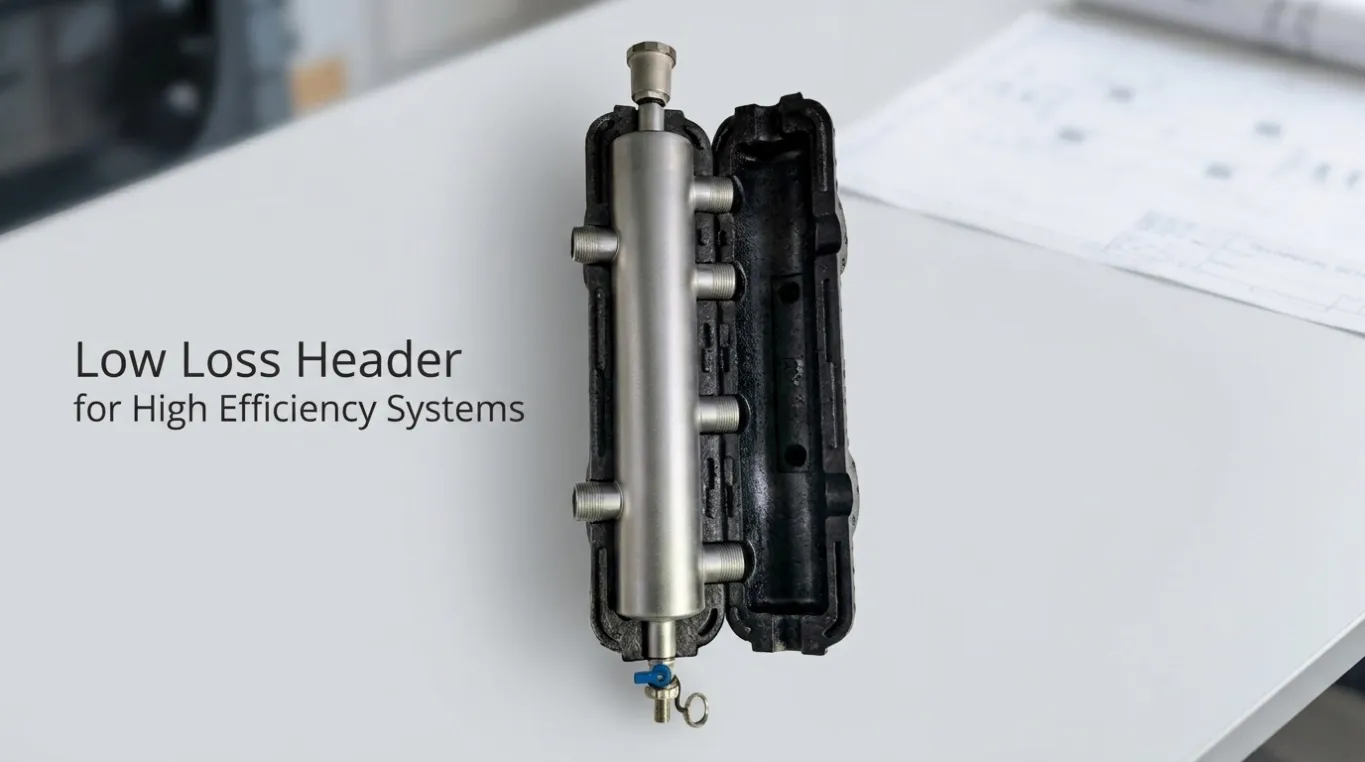

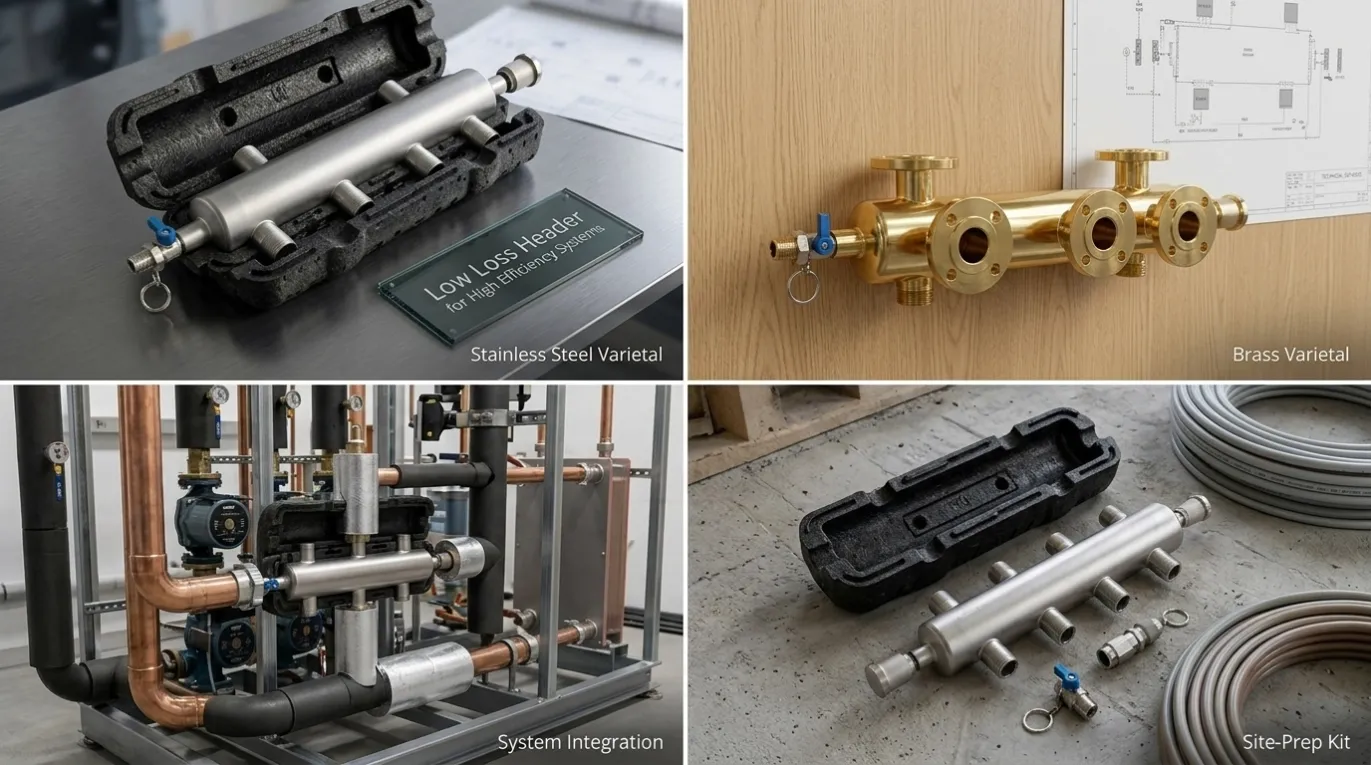

Stainless Steel Low Loss Header with EPP Insulation Box

Overview Engineered for modern hydronic heating and cooling systems, this Stainless Steel Low Loss Header (Hydraulic Separator) acts as a neutral pressure bridge between primary boiler loops and secondary distribution circuits. By decoupling system flow rates, it optimizes operational efficiency, protects heating equipment from thermal shock, and prevents unwanted circulation issues. Key Features Hydraulic Balance & Decoupling: Effectively decouples primary heat sources from secondary heating




Overview Engineered for modern hydronic heating and cooling systems, this Stainless Steel Low Loss Header (Hydraulic Separator) acts as a neutral pressure bridge between primary boiler loops and secondary distribution circuits. By decoupling system flow rates, it optimizes operational efficiency, protects heating equipment from thermal shock, and prevents unwanted circulation issues.
Key Features
  • Hydraulic Balance & Decoupling: Effectively decouples primary heat sources from secondary heating circuits, eliminating flow rate interference and maintaining balanced system pressures.
  • Corrosion-Resistant Construction: Crafted from high-grade 304 stainless steel to ensure exceptional durability, pressure resistance, and long-term reliable performance.
  • Integrated EPP Insulation: Supplied with a custom-molded Expanded Polypropylene (EPP) thermal insulation shell to reduce heat dissipation, maximize system energy efficiency, and prevent surface condensation.
  • Air & Dirt Separation Support: Features top and bottom connections specifically designed for easy installation of automatic air vents and drain valves to purge trapped air and collect debris.
Specifications
  • Body Material: Grade 304 / 316L Stainless Steel
  • Insulation Material: EPP (Expanded Polypropylene)
  • Max Operating Pressure: 6 bar (87 PSI)
  • Max Operating Temperature: 110°C (230°F)
  • Connection Types: 1", 1-1/4", 1-1/2" Male/Female BSP & NPT Threaded Options
  • Applications: Residential and commercial hydronic central heating, heat pumps, boiler systems, and underfloor heating manifolds.

Continue browsing

More products from the catalog

Pair it with other pieces from the same collection or routine.

Gemini_Generated_Image_yqd02uyqd02uyqd0

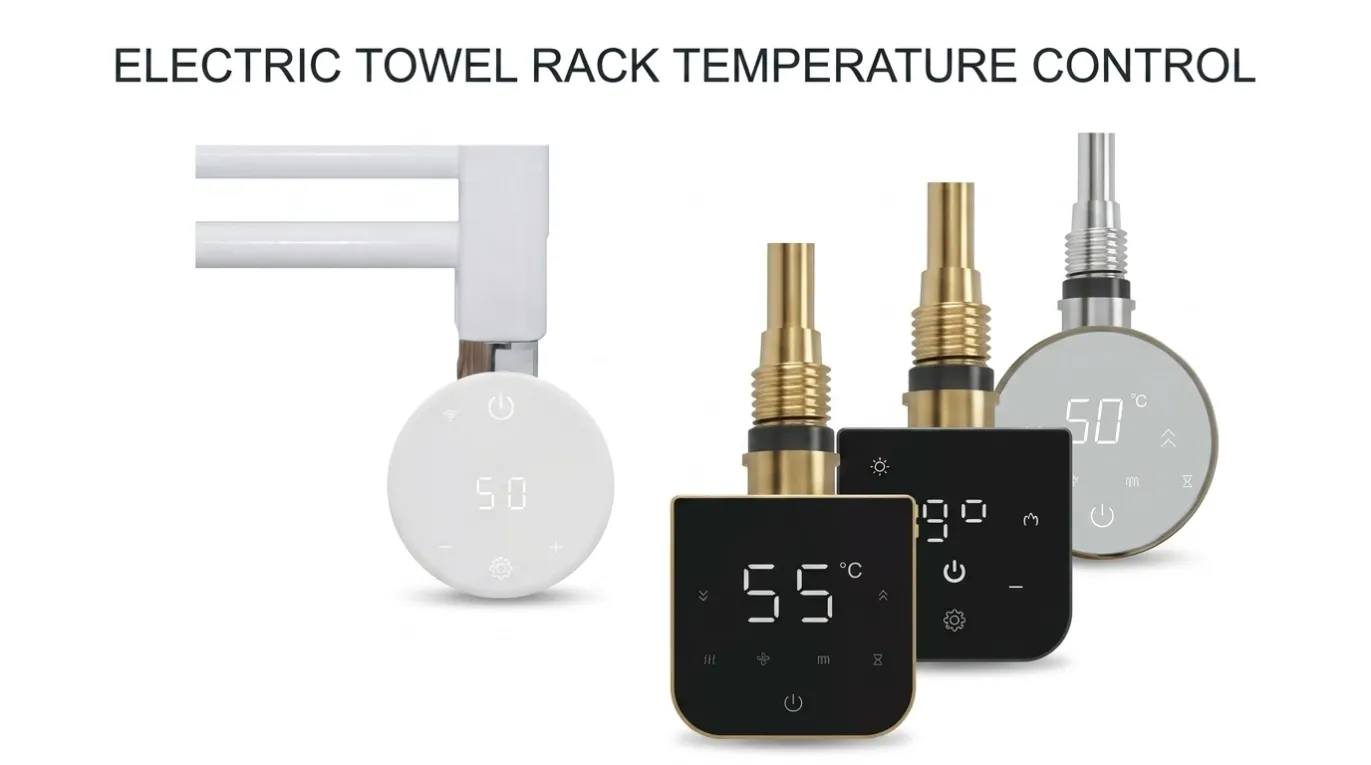

Smart Electric Heating Elements & Controllers for Towel Radiators

The Electric Towel Rack Temperature Control Series offers modular, high-precision heating solutions designed for electric towel rails, bathroom radiators, and dual-fuel systems. Available in both round and square digital interfaces with customizable metallic and matte finishes, these thermostatic heating elements combine modern bathroom aesthetics with intelligent temperature management and energy savings.Key FeaturesMulti-Design Digital Controllers: Available in stylish round and square LED/LCD

View product
Gemini_Generated_Image_jyld1zjyld1zjyld

Smart Electric Heated Towel Rail Radiator with Thermostatic Control

The Smart Electric Heated Towel Rail Radiator combines sleek modern bathroom aesthetics with advanced thermostatic warming technology. Designed with horizontal heating bars and a integrated digital controller, this electric towel warmer efficiently dries towels, warms bathroom space, and eliminates moisture—delivering a luxury hotel-like experience in residential and commercial bathrooms.Key FeaturesIntegrated Digital Controller: Bottom-mounted LED round thermostat screen allows intuitive temper

View product
Gemini_Generated_Image_xj1kyrxj1kyrxj1k

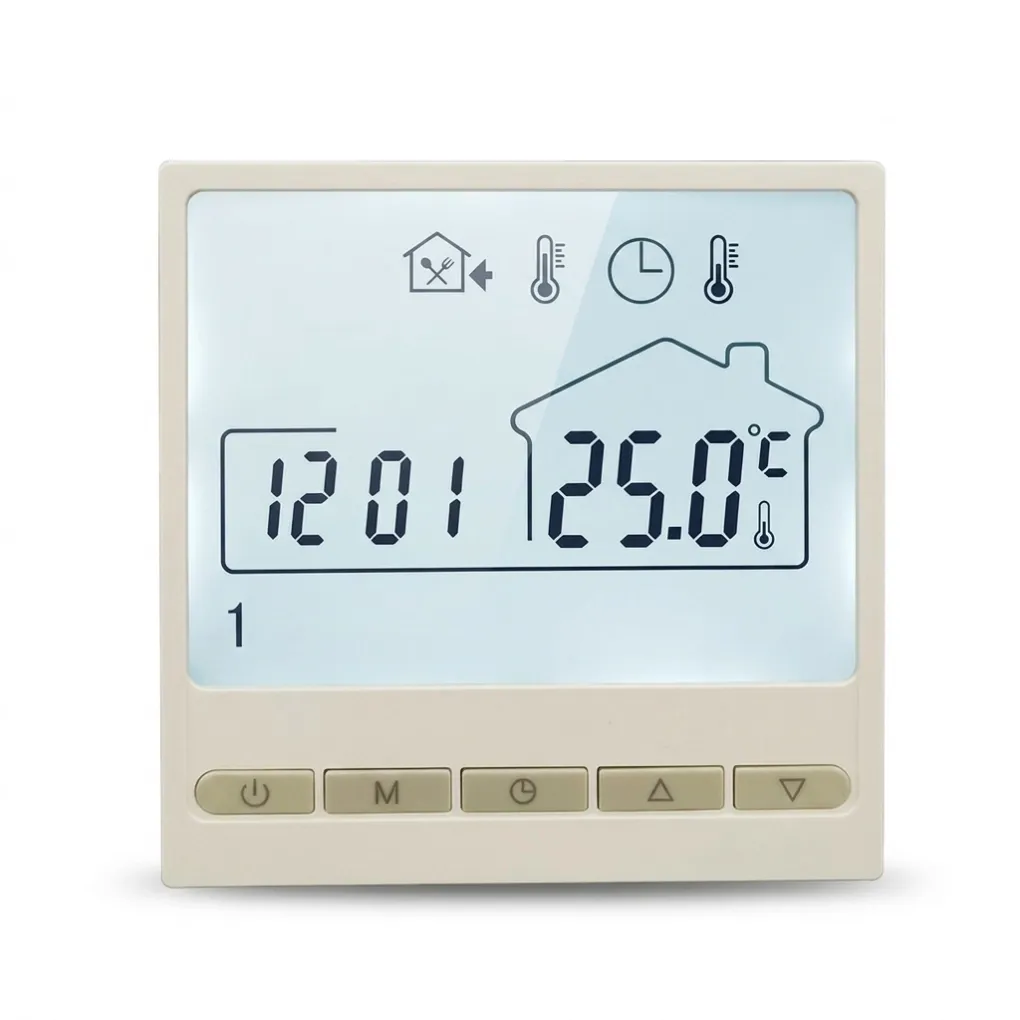

Digital Programmable Thermostat for Underfloor Heating & Boiler Systems
